Galvanized Welded Wire Mesh


  • FOB Price:FOB USD 15-35 per roll

  • Port:tian jin port

  • Minimum Order Qu antity:100 rolls

  • Supply Ability:3000 rolls per roll

  • Payment Terms:L/C , T/T , WESTERN UNION

Categories :
Contact Now
  • Description
  • Place of Origin:hebei , china
  • Price Valid Time:the quotation is valid all the time
  • Export Markets:Europe , Africa , and middle east countries
  • HS Code:
  • Means of Transport:ship , airplane
  • Date of Dispatch:within 20 days ater received the advanced deposit
  • Applications:
  • Company certificate:CE , ISO
  • Quality inspection:ISO9001
  • Brand Name:YZ
  • Type:welded fence
  • Application:
  • Hole Shape:square
  • Material:galvanized wire
  • Wire Gauge:
  • Wire Diameter:2.0-6.0mm
  • Mesh:1”*1” , 1”*1/2” , 1/2”*1/2”
  • Packaging Detail:wooden pallet

Product Description

  • Material : low carbon steel wire,galvanized wire,and PVC
  • coated wire ,PE wire
  • Service Life : 5-10 years
  • MOQ : 10 Roll
  • Price : $10.25~40.25 / roll
  • Technique : Welded
  • Type : Panel an roll
  • Application : poultry case,egg basket, passageway rail.
  • waterspout, lobby, guardrail, rodentresistant net,mechanical
  • shield, livestock and plants guardrail and fences,industry,
  • agriculture, construction, transportation and mining industry, etc

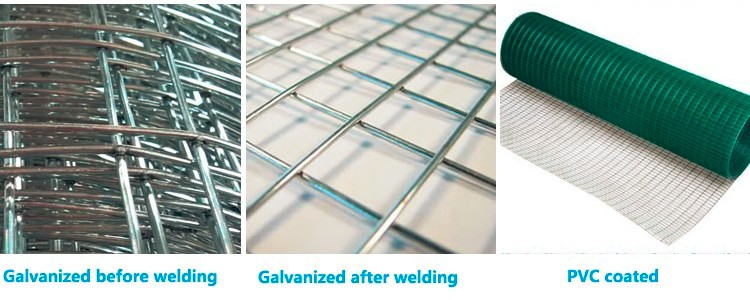

Surface Treatment

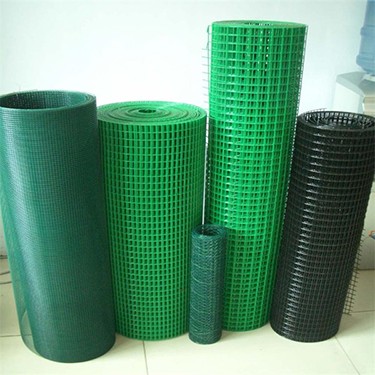

Product Show

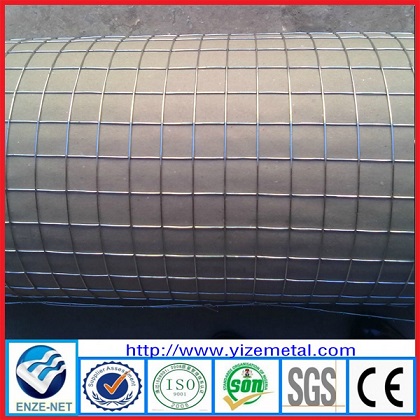

Galvanized Welded Wire Mesh

 Specification List of Welded Mesh Panel
              Opining                        Wire Diameter
Inch                     mm        BWG                 mm
1″x1″ 25mmx25mm 14#-11# 2.0mm-3mm
2″x1″ 50mmx50mm 14#-8# 2.0mm-4mm
2″x2″ 50mmx50mm 14#-8# 2.0mm-4mm
3″x2″ 75mmx50mm 14#-6# 2.0mm-5mm
3″x3″ 75mmx75mm 14#-6# 2.0mm-5mm
4″x2″ 100mmx50mm 14#-4# 2.0mm-6mm
4″x4″ 100mmx100mm 14#-4# 2.0mm-6mm
5″x5″ 125mmx125mm 14#-4# 2.0mm-6mm
6″x6″ 150mmx150mm 14#-4# 2.0mm-6mm
                                         Note: Special specifications can be customized.

PVC Coated Welded Wire Mesh

     PVC Coated Welded Mesh:
                                           Opening Wire Diameter
  In inch   In metric unit(mm)
1/4″x1/4″    6.35mx6.35mm  21,22,23,24,24,25
1/2″x1/2″    12.7mmx12.7mm  16,17,18,19,20,21
3/4″x3/4″   19mmx19mm  16,17,18,19,20,21
 1″x1″    25.4mmx25.4mm  15,16,17,18,19,20
Technical Note:

1.Standard roll length:30m;width:0.5m to 2.5
2.Special sizes avaliable at request
3.Packing:in plastic in rolls .Custom packing available at reques

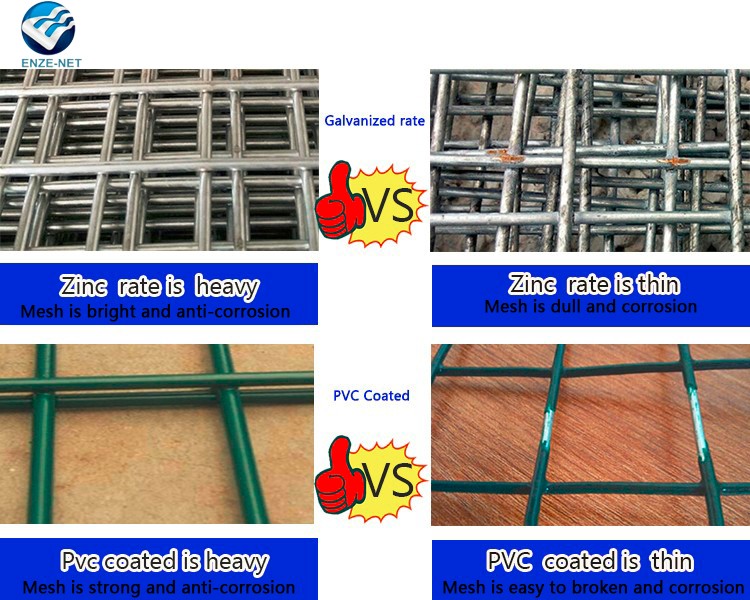

Advantage

Application

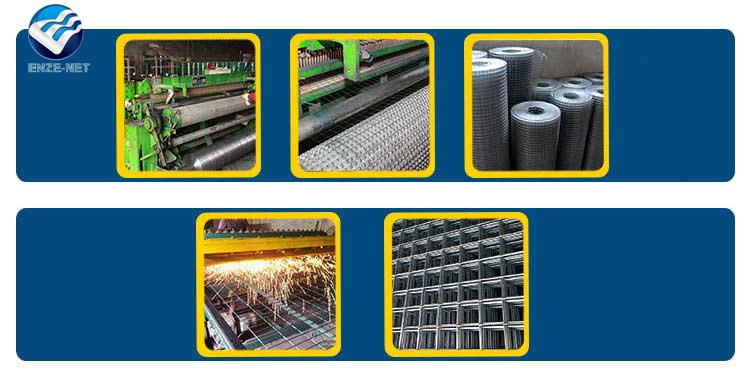

Produce Process

Our Factory

Anping County Yize Metal Products Co., Ltd. is engaged in the production and development of Pvc and Galvanized Wire Mesh Fence , Chain link fence, Barbed wires and Welded mesh products.We are located in the famous Wire Mesh Land of China Anping, Hebei Province, China. we have developed into a famous enterprise in wire mesh business. Following ISO9001:2008 standards strictly and paying attention to prestige and contracts, we have won markets and got customers’ good reputation home and abroad.
