- Place of Origin:Hebei , china ,
- Price Valid Time:the quotation is valid all the time
- Export Markets:Europe , Africa , and middle east countries
- HS Code:
- Means of Transport:ship , airplane
- Date of Dispatch:within 20 days after received the advanced deposit
- Applications:
- Company certificate:CE , ISO
- Quality inspection:ISO 9001
- Brand Name:YZ
- Type:welded fence
- Application:
- Hole Shape:square
- Material:stainless steel
- Wire Gauge:302, 304 , 304L , 316 , 316L
- Wire Diameter:
- Mesh:1”*1” , 1”*1/2” , 1/2”*1/2” ,
- Packaging Detail:WOODEN PALLET
Product Description
- Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
- Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
- MOQ: 1 roll
- Woven style: plain,twill,dutch
- Mesh :1-635mesh
- Diameter: 0.0008″-0.08″
- Roll Width: Max 240″
- Roll Length: Max 2000′
- Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
- Delivery Time: 5 days for stock material
- Have exported: USA, EU , Japan and South America, etc
- Just tell me the material,woven style, mesh, diameter and l can give you the qutation right now

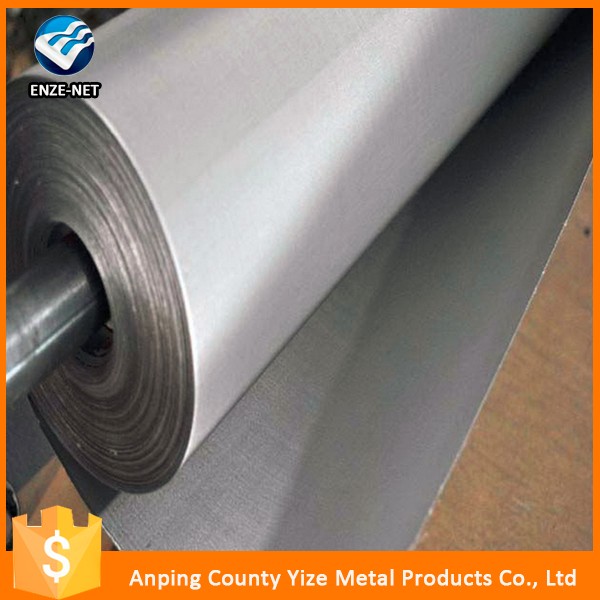

Specification of stainless steel wire mesh
| Type | Mesh/Inch | Wire diameter (inch) | OPen Area | Weight (LB) /100 Square Foot |
| Plain,Twill Weave Wire Mesh | 1 × 1-635 × 635 | 0.0008″-0.08″ | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter (inch) | Absolute Filtration Finess μm | Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh | 8 × 85-80 × 400 | 0.014” × 0.0126”- 0.0049” × 0.0028” | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Duntch Weave Wire Mesh | 20 × 250 – 500 × 3200 | 0.0098” × 0.0079” – 0.0015” × 0.0010” | 110-120 to 8-9 | 98-105 to 2-3 |
Woven Type
Type : Plain ,Twill, Plain Dutch , Twill Dutch, Reverse Dutch Weave and Five-Heddle Weave.
Product Show
Application
Stainless steel wire mesh has been widely used in chemical, petrochemical and oil exploration, transportation, nuclear industry, energy, textile, aerospace, electronics, food, pharmaceutical, paper and other industrial sectors, in certain areas or may not become an indispensable substituted metal material. In addition, the sub-mesh stainless steel and decorative and easy to clean and antibacterial properties, in the consumer sector it has been widely used, such as construction and decoration, kitchen utensils, cutlery, metal and other civil.
Strict Quality Inspection
We check on the quality with different tools . So you do not need to worry about our quality and if you need, we can supply the Sample for free.
Packing
Factory
Anping County Yize Metal Products Co.,Ltd.is engaged in the production and development of Pvc and Galvanized Wire Mesh Fence , Chain link fence, Barbed wires and Welded mesh products.We are located in the famous Wire Mesh Land of China Anping, Hebei Province, China. we have developed into a famous enterprise in wire mesh business. Following ISO9001:2008 standards strictly and paying attention to prestige and contracts, we have won markets and got customers’ good reputation home and abroad.
